HSK taper on CNCs – what is it ?

CNC: HSK holder taper – what is it, and how is it different ?

The HSK taper is relatively new compared to BT, CAT and ISO.

The taper on HSK is hollow and short, with a taper of 1/10 or 5.72 degrees (as against 7/24 or 16.26 degrees on BT, CAT and ISO – see this earlier post).

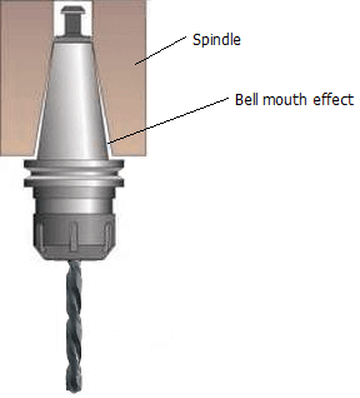

The short taper enables a faster tool change and keeps the bearing of the machine spindle compact, close to where the machining is actually being done. The taper holding area of the machine spindle expands at higher speeds due to centrifugal force, causing a ‘bell-mouth’ effect in older systems. The HSK’s hollow taper expands with the machine spindle, reducing the bell-mouth effect.

The face on the holder butts against the spindle face, ensuring that the tool holder cannot be sucked up into the spindle farther when run at high speeds. Z dimensions on the part are hence accurately controlled.

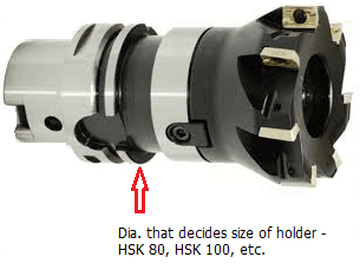

HSK holders come in several sizes, HSK32 to HSK100. The number is actually the largest dimension on the holder.

Text and pics. source: CADEM NCyclopedia multimedia CNC training software.
